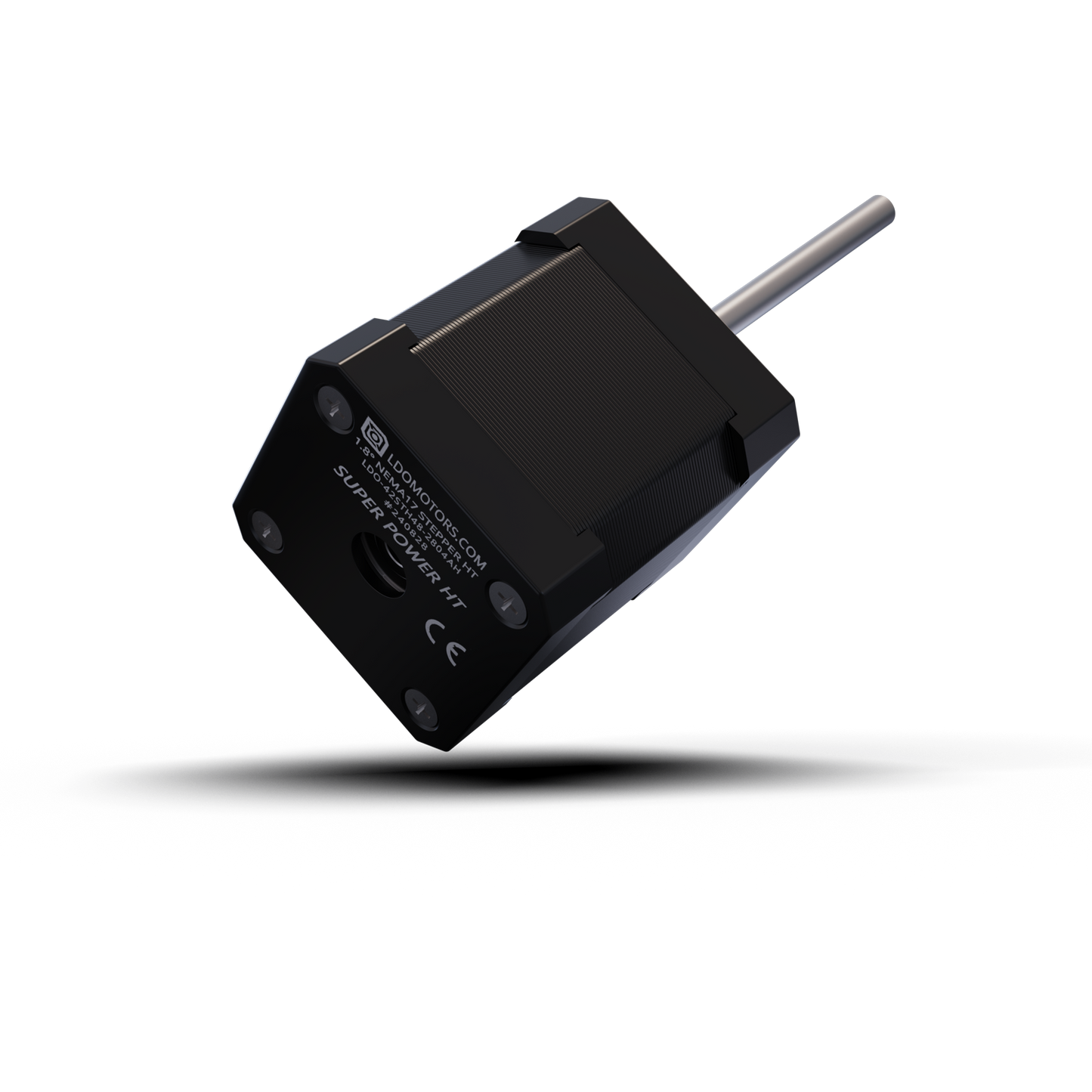

LDO NEMA 17 SUPER POWER HT STEPPER MOTOR 55mm Shaft (LDO-42STH48-2804AH S55)
LDO NEMA 17 SUPER POWER HT STEPPER MOTOR 55mm Shaft (LDO-42STH48-2804AH S55)
Regular price
R 600.00 ZAR
Regular price
Sale price
R 600.00 ZAR
Unit price
/
per
Out of stock
Couldn't load pickup availability
Share
No reviews
LDO SUPER POWER HT, this motor comes with a 1 meter wire terminated with a 4 pin JST-XH connector.
LDO Motor's Super Power Nema 17 stepper motors offer next generation high temperature performance with a 48mm body length, 1.8 degree step angle and a 2.8A current rating.
Detailed Specifications:
| Specification | Details |
|---|---|
| Phase Number | 2 |
| Rated Voltage | DC 1.4V / Phase |
| Rated Current | DC 2.8A / Phase |
| Phase Resistance | 0.7Ω (±20%) |
| Phase Inductance | 0.6 mH (±20%) |
| Step Angle | 1.8° (±5%) |
| Holding Torque | 4.2 kgf·cm (420 mN·m) |
| Detent Torque | 25 mN·m REF |
| Rotate Direction | A-AB-B CW |
| Insulate Resistance | 100MΩ (DC 500V) |
| HI-POT | AC 600V / 1mA / 1S |
| Insulation Class | Class H 180°C |
| Rotor Inertia | 84.5 g·cm² REF |
| Weight | 0.35 kg REF |
You can find the Datasheet HERE
