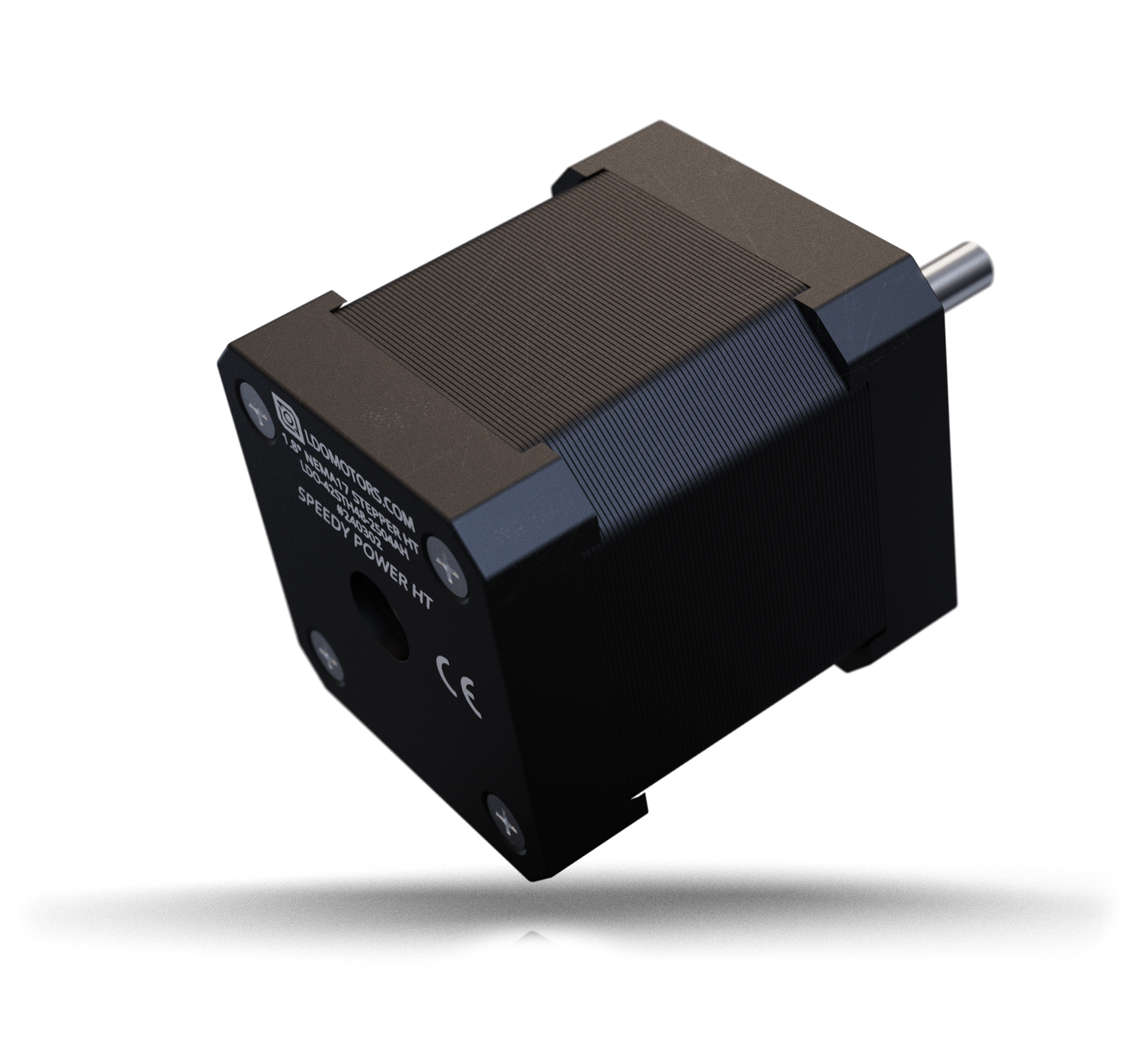

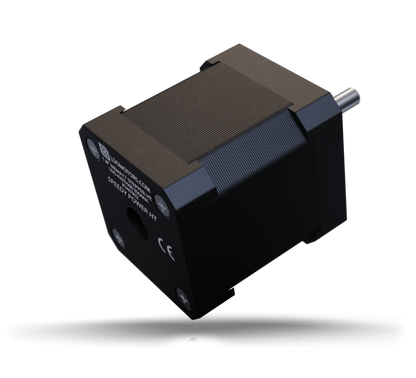

LDO NEMA 17 SPEEDY POWER HT STEPPER MOTOR (LDO-42STH48-2504AH)
LDO NEMA 17 SPEEDY POWER HT STEPPER MOTOR (LDO-42STH48-2504AH)
5.0 / 5.0
(1) 1 total reviews
19 in stock
Couldn't load pickup availability
Share
LDO SPEEDY POWER HT, this motor comes with a 1 meter wire terminated with a 4 pin JST-XH connector.
This is an evolution of the 2504 speedy motors, with greater holding torque and a higher power rating (2.8 vs 2.5a).
Detailed Specifications:
| Specification | Details |
|---|---|
| Phase Number | 2 |
| Rated Voltage | DC 3.0V / Phase |
| Rated Current | DC 2.5A / Phase |
| Phase Resistance | 1.2Ω (±20%) |
| Phase Inductance | 1.5 mH (±20%) |
| Step Angle | 1.8° (±5%) |
| Holding Torque | 5.5 kgf·cm (55 N·cm) |
| Detent Torque | 20 mN·m REF |
| Rotate Direction | A-AB-B CW |
| Insulate Resistance | 100MΩ (DC 500V) |
| HI-POT | AC 600V / 1mA / 1S |
| Insulation Class | Class H 180°C |
| Rotor Inertia | 84.5 g·cm² REF |
| Weight | 0.35 kg REF |
You can find the Datasheet HERE
Bought two of these to try sort out some issues I was having with my Voron, and man do they perform. As a drop in replacement They upped my seed from 200 to 500mm/s and fixing the problematic bearings and racking in my gantry allowed these guys to go up to 800mm/s without any really attempts at tuning.
I'm really impressed.
