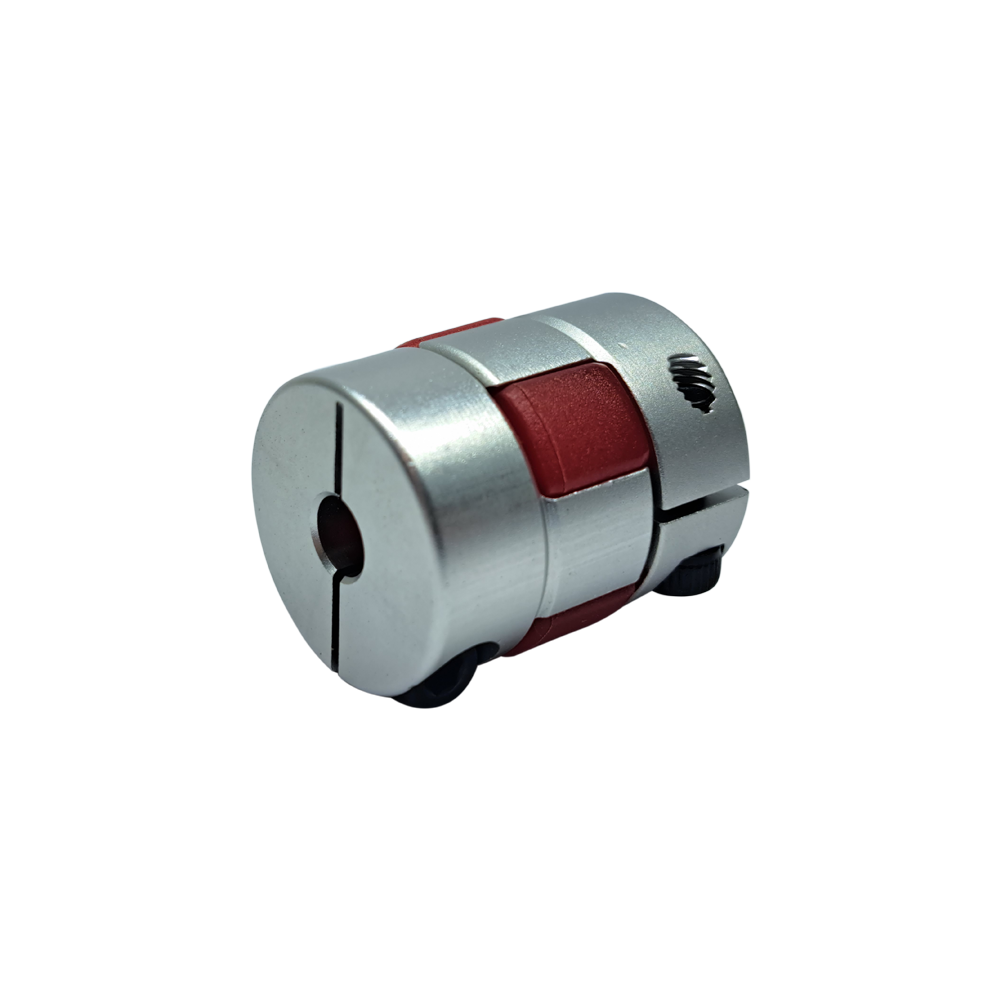

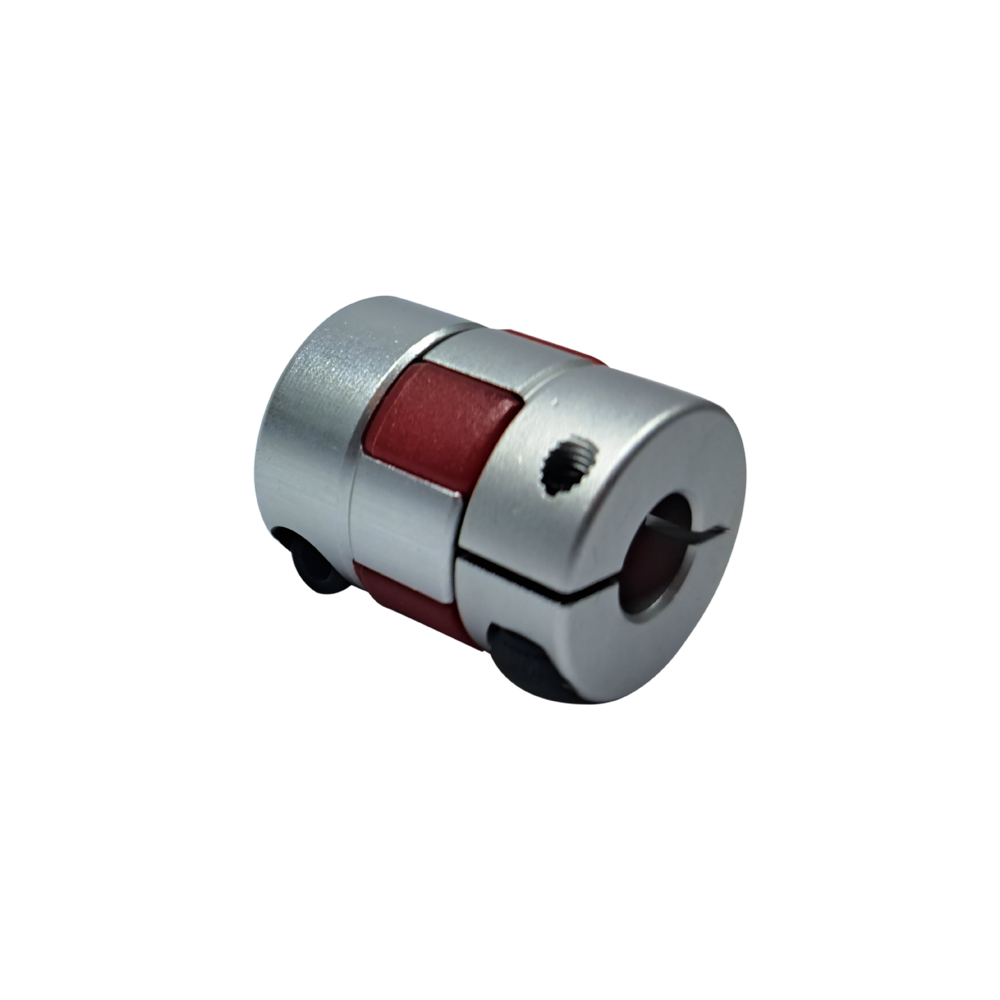

FLEXIBLE COUPLING, PLUM TYPE 5mm to 8mm

Flexible coupling to take up misalignment between two shafts. Typically used between the output shaft of a stepper and a drive shaft, ball screw or threaded rod.

• Outer diameter: 20mm
• Length: 25mm
• Bore size 5mm - 8mm
• Rated Torque: 5 N.m
• Peak Torque: 10 N.m
• Maximum Speed: 17 000 RPM
• Clamping type
• Includes clamping screws
