Product Description:
Introducing the BIGTREETECH TFT43 V3.0, a versatile 3D printer screen. Designed to seamlessly replace the traditional LCD12864, these screens offer enhanced functionality with a choice between touch screen or LCD12864 mode for your convenience.
Key Features:
-

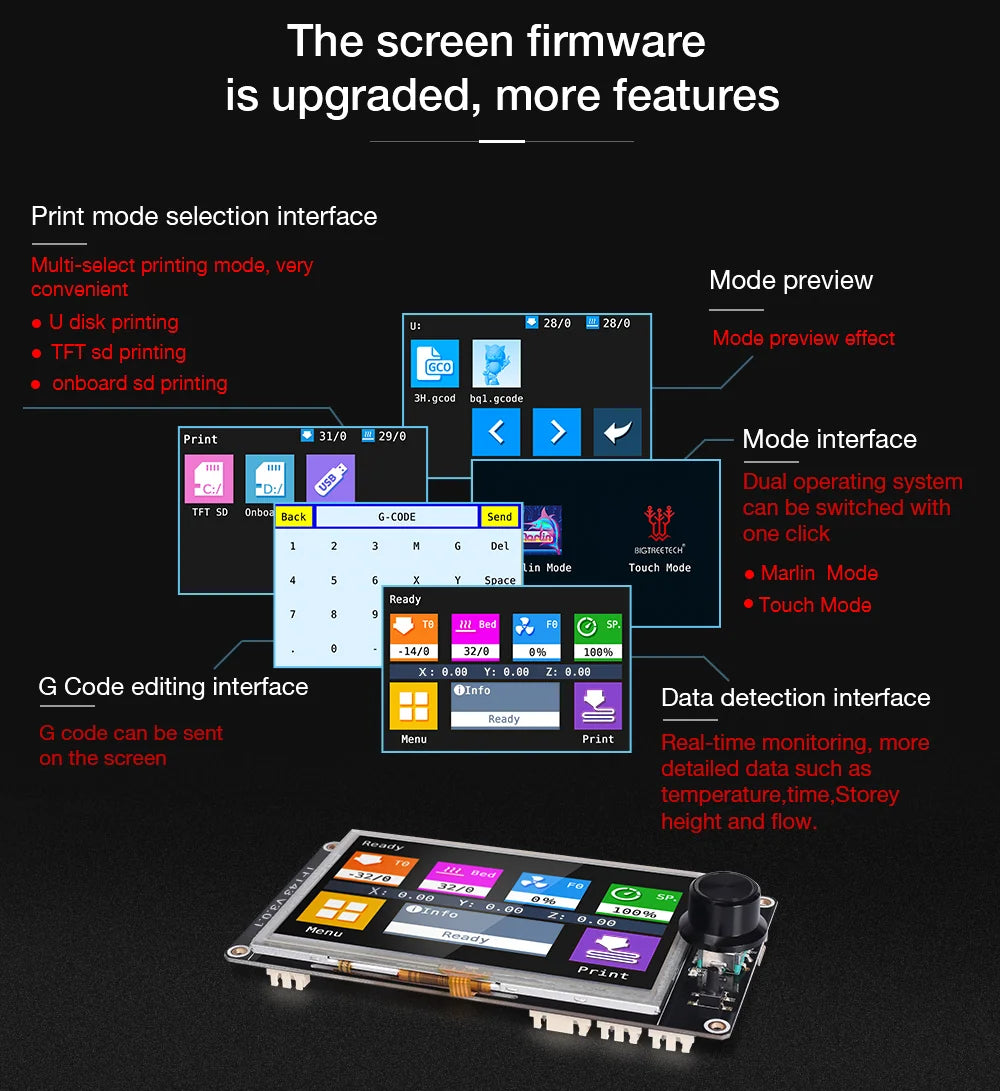

More convenient operation. Experience unparalleled convenience with the BIGTREETECH TFT43/50/70 V3.0. Upgrade firmware effortlessly using the SD card slot, ensuring a hassle-free and user-friendly operation.
-

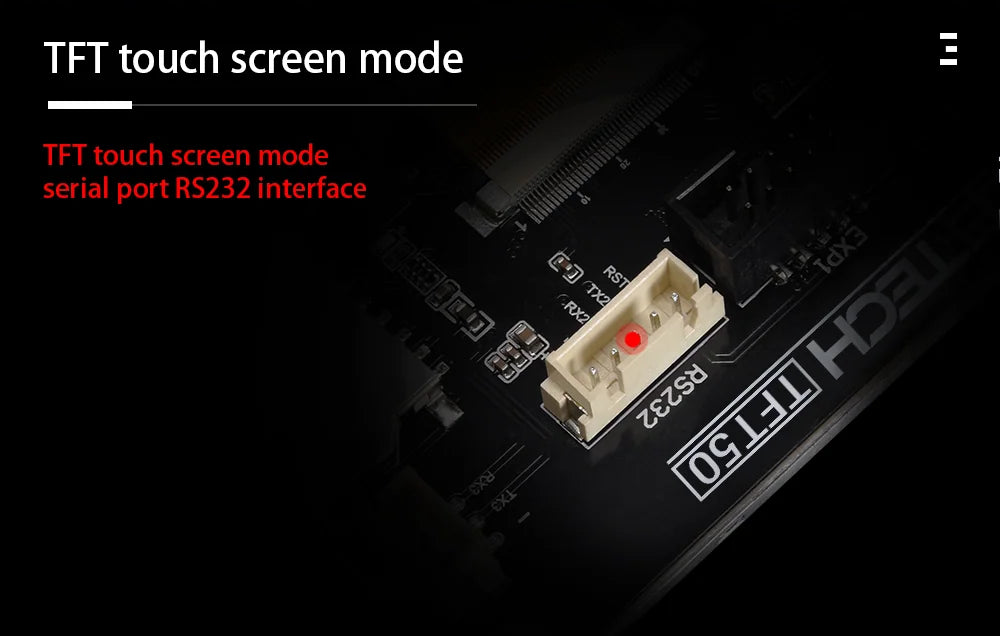

Stronger compatibility. Achieve superior compatibility with two distinct working modes – UART screen and the 12864 types screen. The UART screen supports SD cards and U disks, providing a wide range of options to suit your preferences.
-

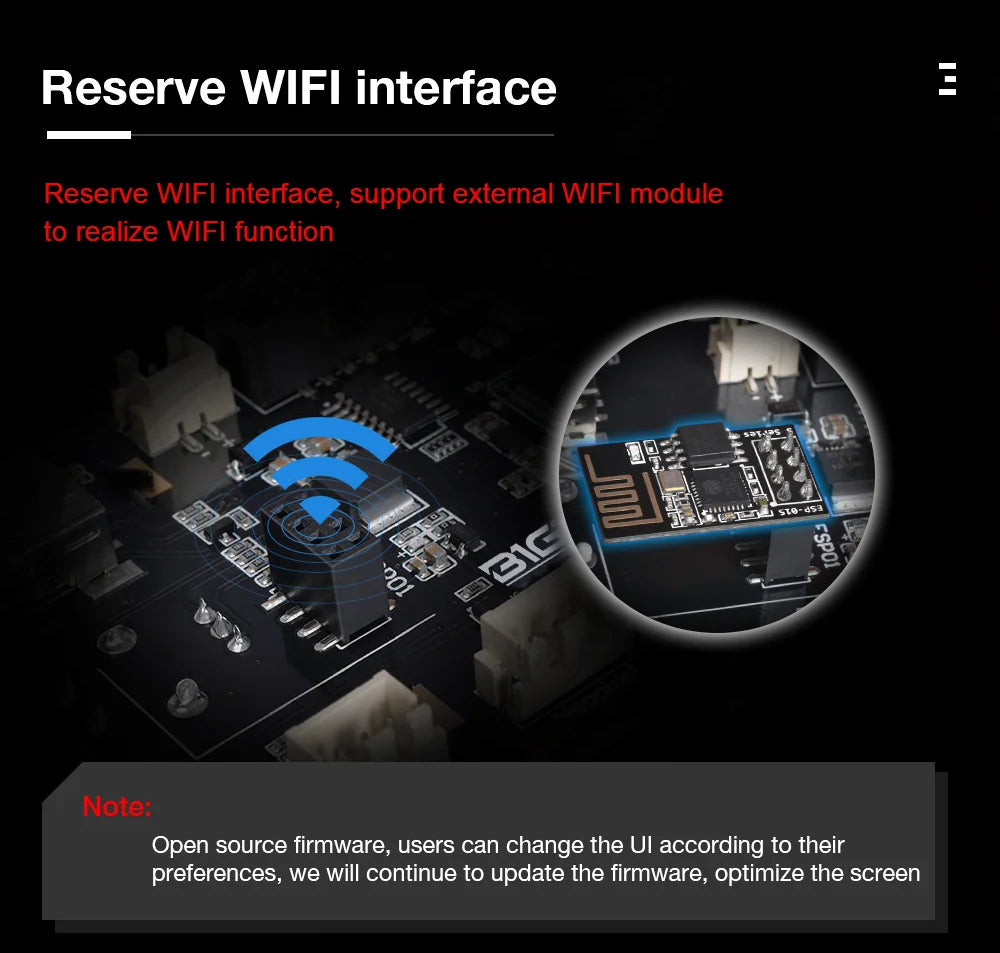

More expansion ports. Explore expanded possibilities with additional ports for enhanced connectivity. The WIFI port enables seamless connection to a wifi module, while the FIL-DET port allows for easy integration with filament runout detection modules. Additionally, the PS-ON port facilitates connection to an automatic shutdown module after printing, ensuring an efficient and streamlined printing experience.
Specification | BTT TFT43 V3.0.1 |
---|---|
Appearance size | 143.65*67.25mm |
Installation size | 135.65*59.25mm |
MCU | GD32F205VCT6 |
Screen display area | 95.04*53.856mm |
Screen resolution | 480 (RGB) * 272 |
Number of screen backlights | 7 white LED lights |
Power input | DC 5V |
Logic voltage of SD card | 3.3V and 5V, compatible with MEGA2560 |
