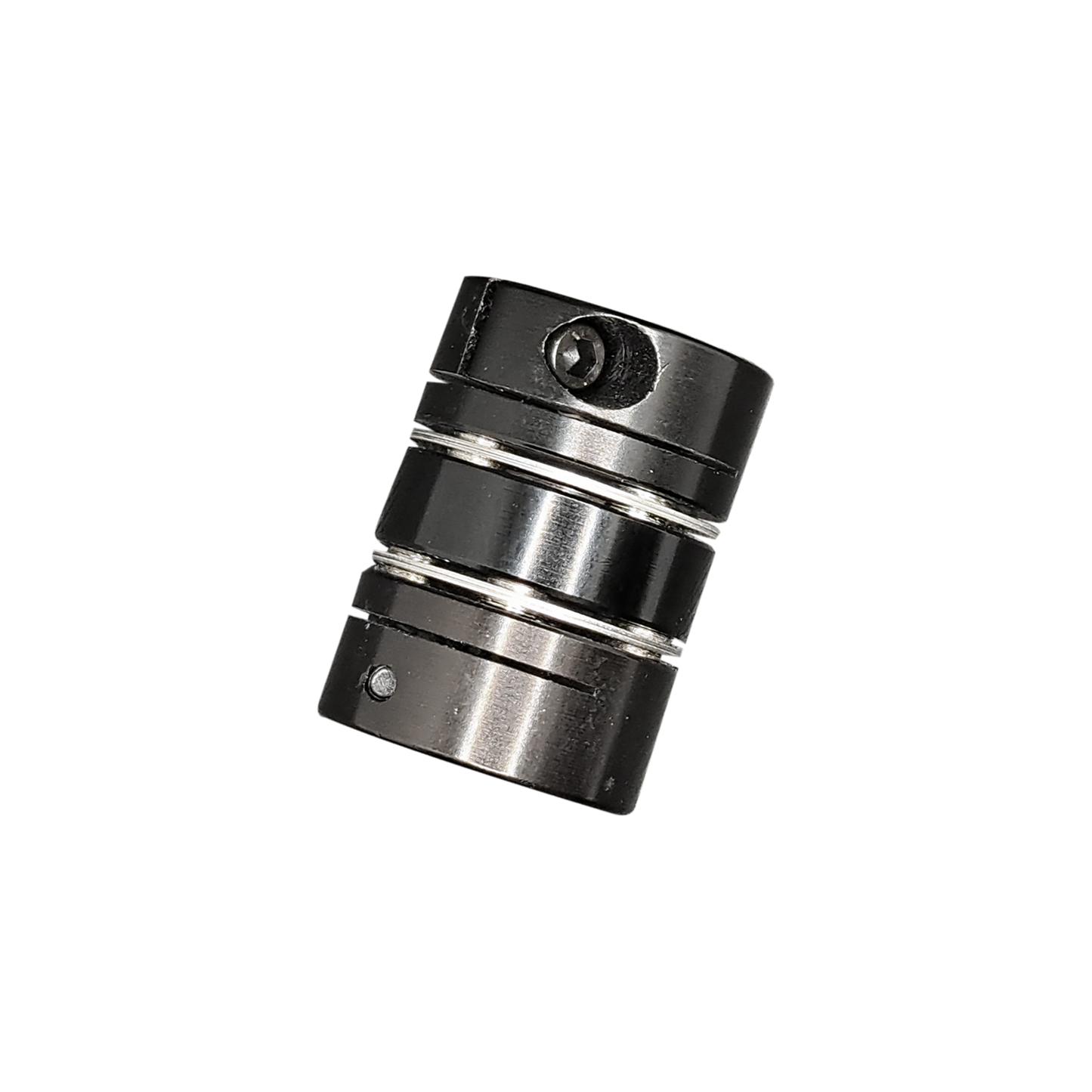

ALUMINIUM BLACK DOUBLE DIAPHRAGM COUPLING 5x5

ALUMINIUM BLACK DOUBLE DIAPHRAGM COUPLING 5x5

Regular price R 180.00 ZAR
Regular price Sale price R 180.00 ZAR
Sale Sold out

13 in stock

A double diaphragm coupling is a flexible coupling used to connect two rotating shafts while accommodating misalignment and dampening vibrations. It consists of two flexible diaphragms (typically made of metal or reinforced rubber) that are connected by a spacer. The diaphragms flex to compensate for misalignment, and their elasticity helps to absorb shocks and vibrations.

Key Features and Benefits:

  • Misalignment Compensation: Accommodates angular, parallel, and axial misalignment, reducing stress on shafts and bearings.
  • Vibration Dampening: Absorbs torsional vibrations and shocks, protecting connected equipment and improving overall system performance.
  • Zero Backlash: Ensures precise transmission of motion and torque, making it suitable for high-precision applications.
  • No Lubrication Required: Reduces maintenance requirements and simplifies operation.

Typically used between the output shaft of a stepper and a drive shaft, ball screw or threaded rod.

  • Outer diameter: 19.7mm
  • Length: 27mm
  • Bore size 5mm - 5mm
  • Rated Torque: 5 N.m
  • Peak Torque: 10 N.m
  • Maximum Speed: 17 000 RPM
  • Clamping type
  • Includes clamping screws
